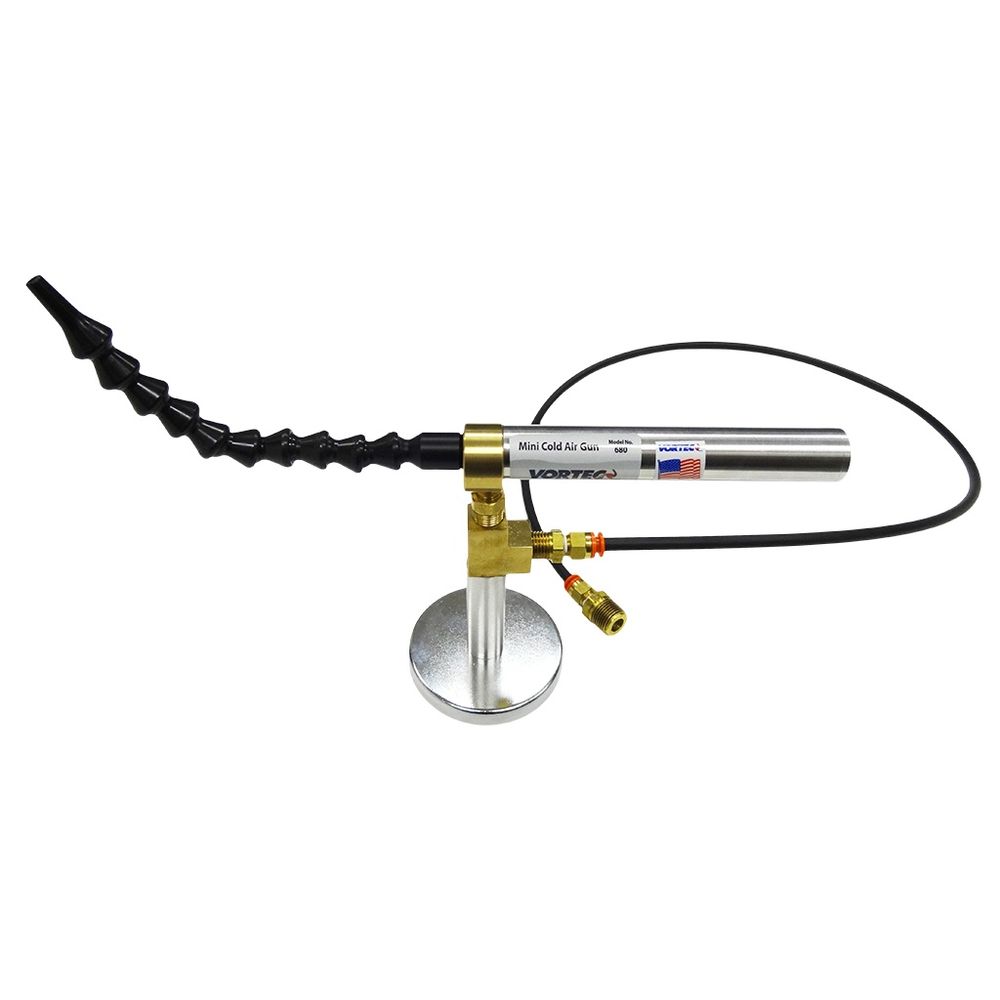

680: Adjustable Mini Cold Air Gun System (350 BTU/h)
Technical data
Model
680
Compressed air pressure (psig)
80 - 100
Inlet size (BSP, inch)
3/8
Cooling Capacity (BTU/hr)
350
Air Consumption @ 100 psig (l/min)
226
Outlet flow rate (l/min)
113
Minimum Outlet Temperature (deg C at 20 deg C inlet air)
-12
Dimension
Download
Dimension and Specifications 680 (PDF file)
